The

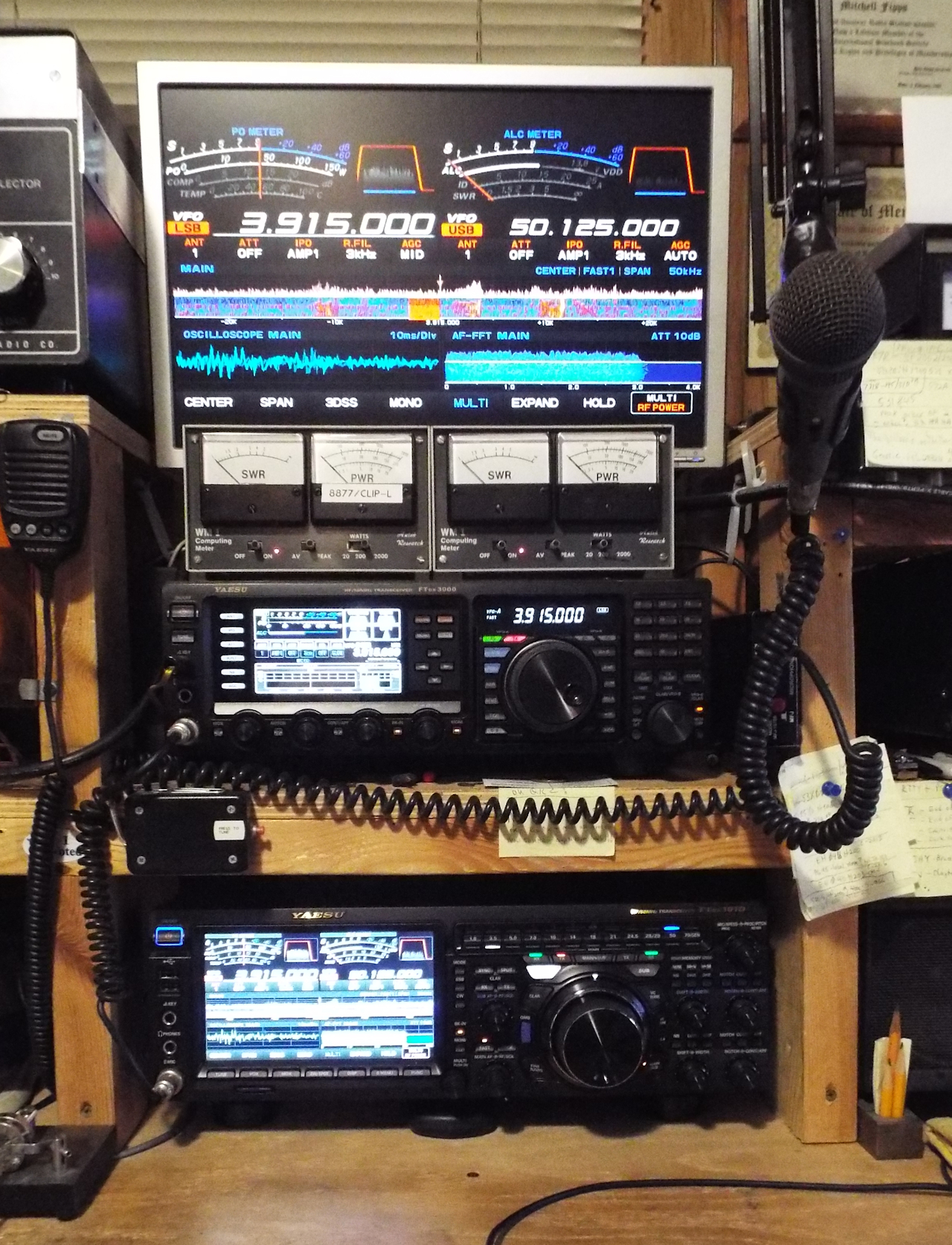

Current center section of my Console
![](New-Con-Ctr.jpg)

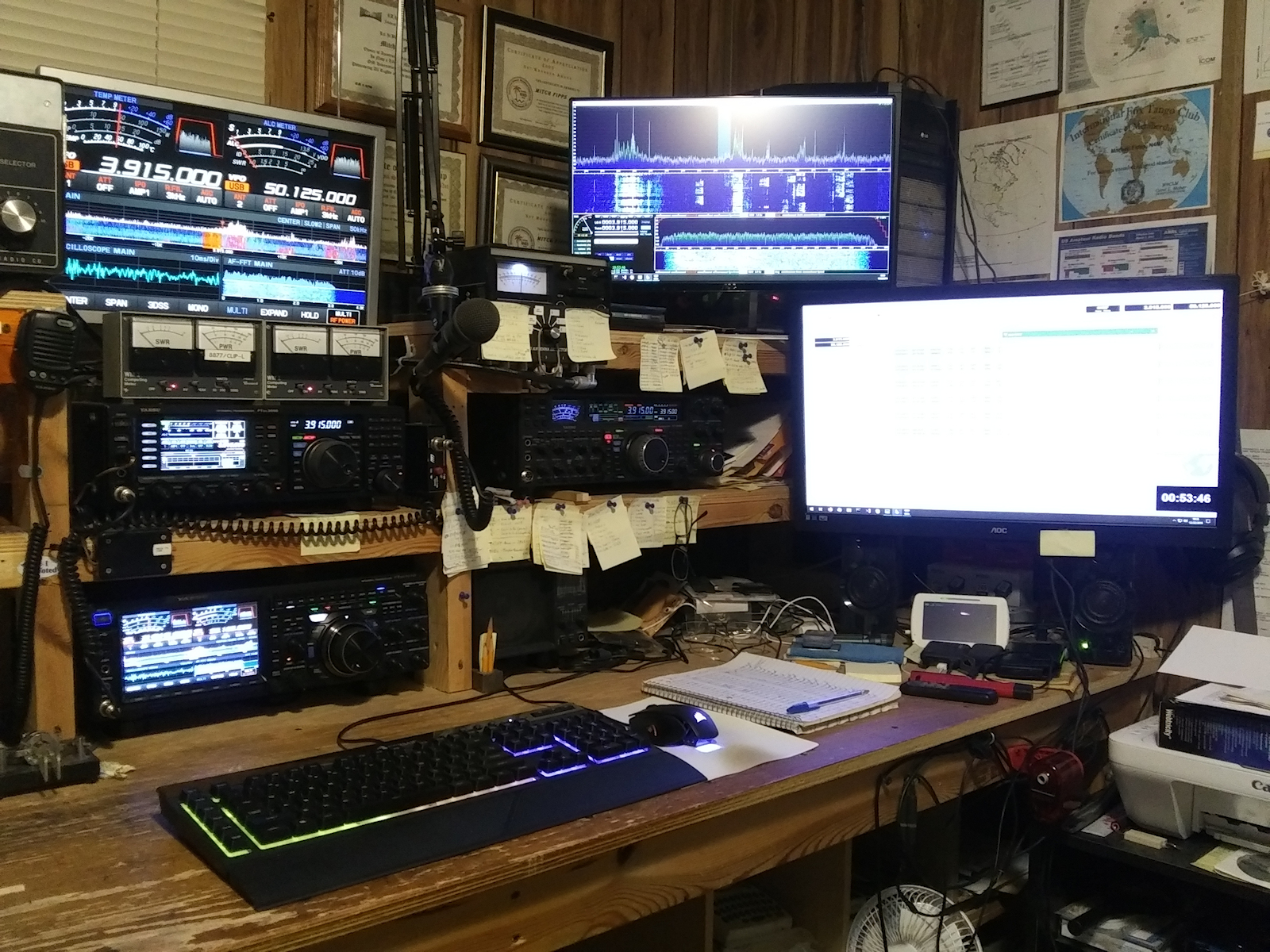

The Right side of the console
![](20191222-Cons-Crnr.jpg)
![](../../coax-cable-full-piece-15-tb.png)

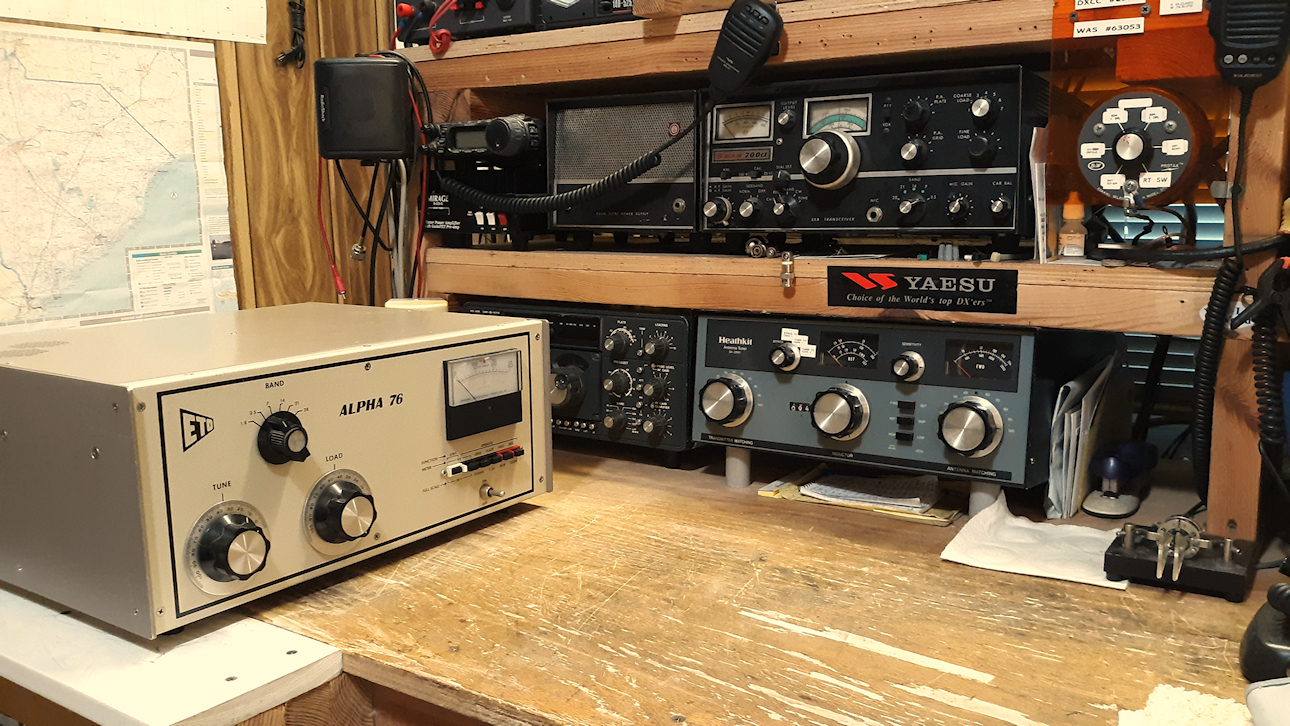

The NEW layout for the Left side of the Console
Lower
![](New-Left-Cons-l.jpg)

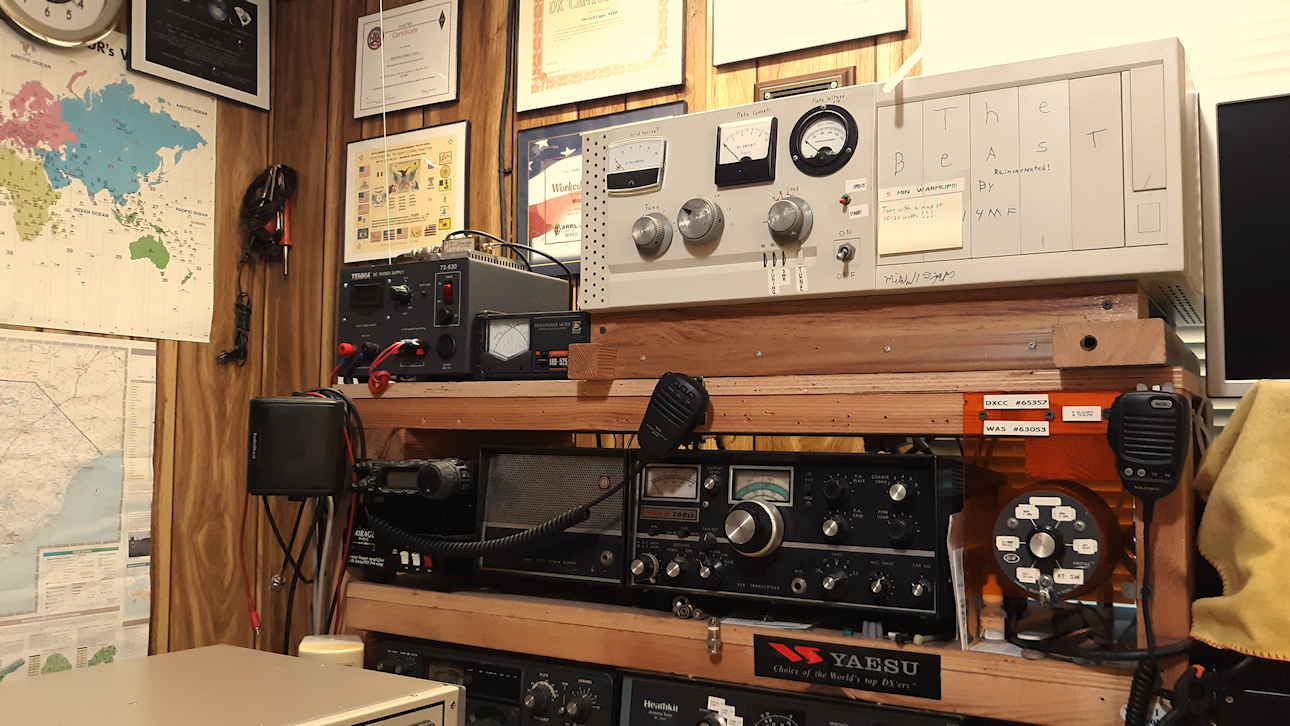

And Upper
![](New-Left-Cons-U.jpg)

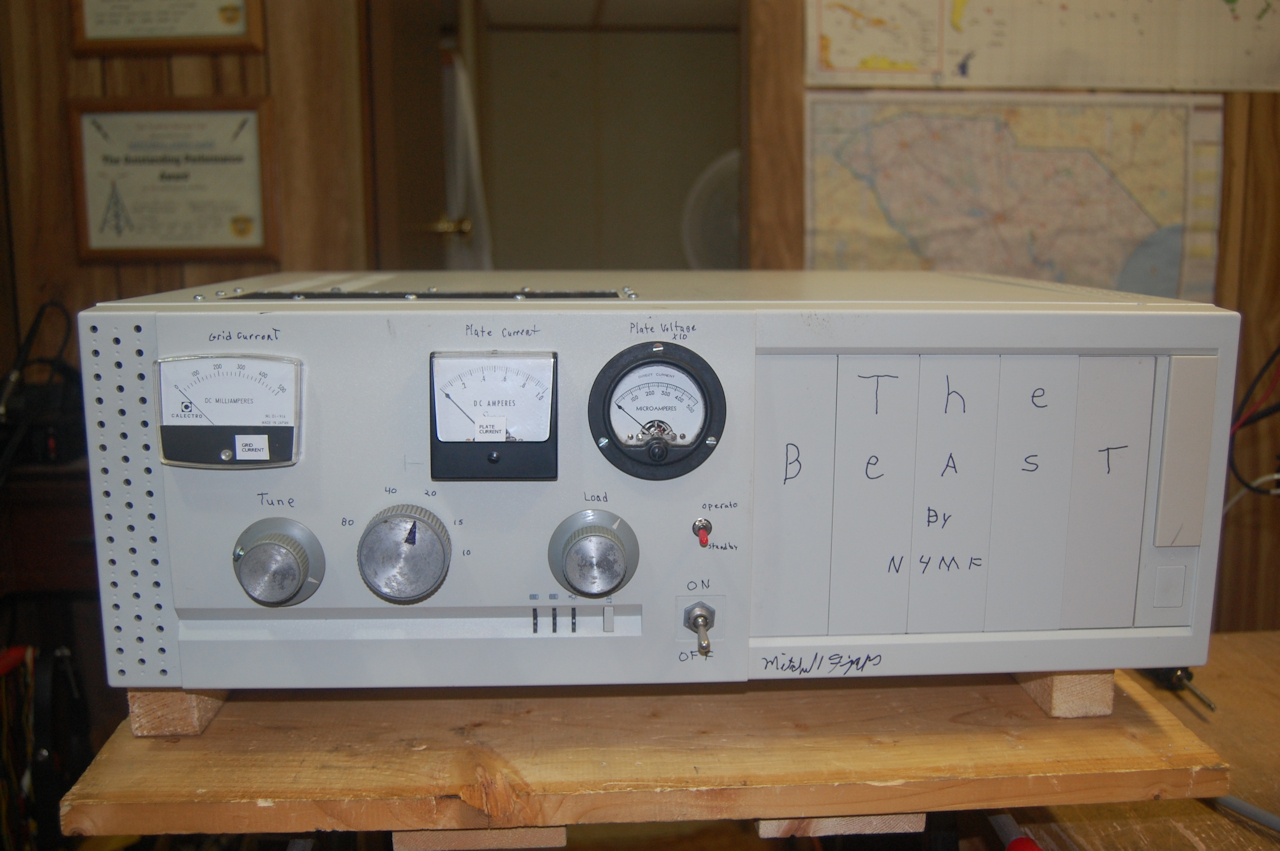

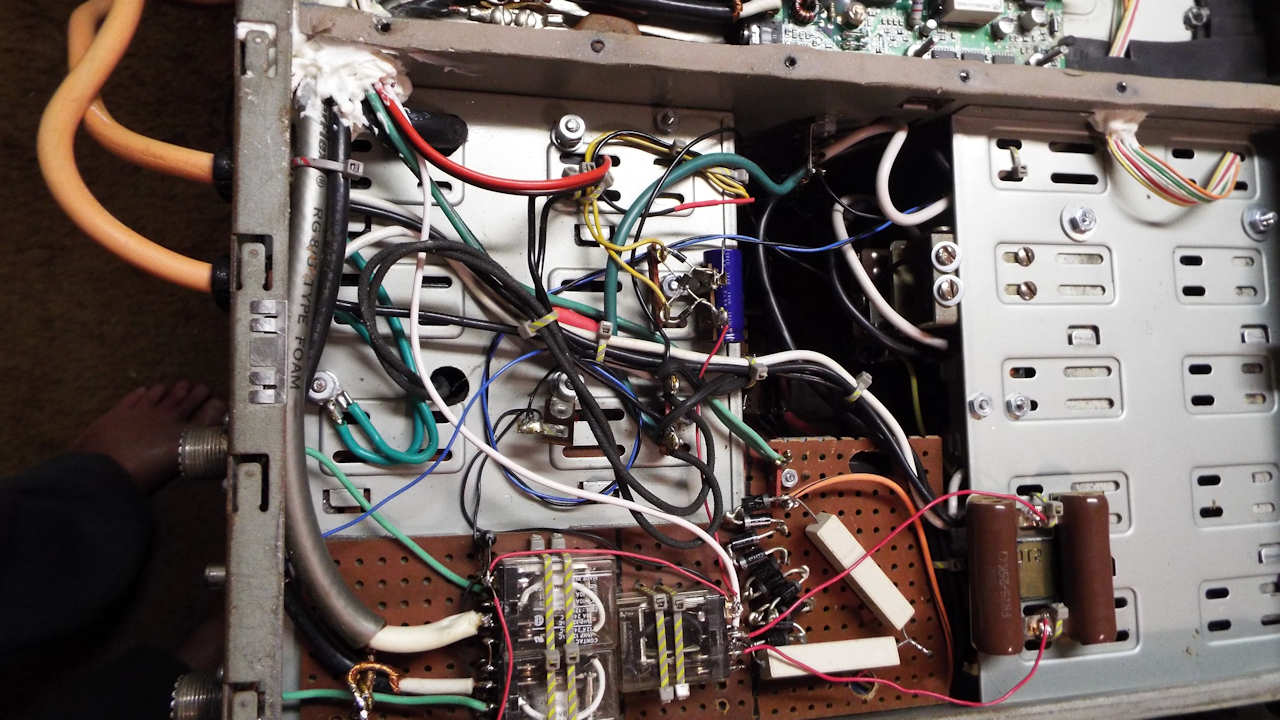

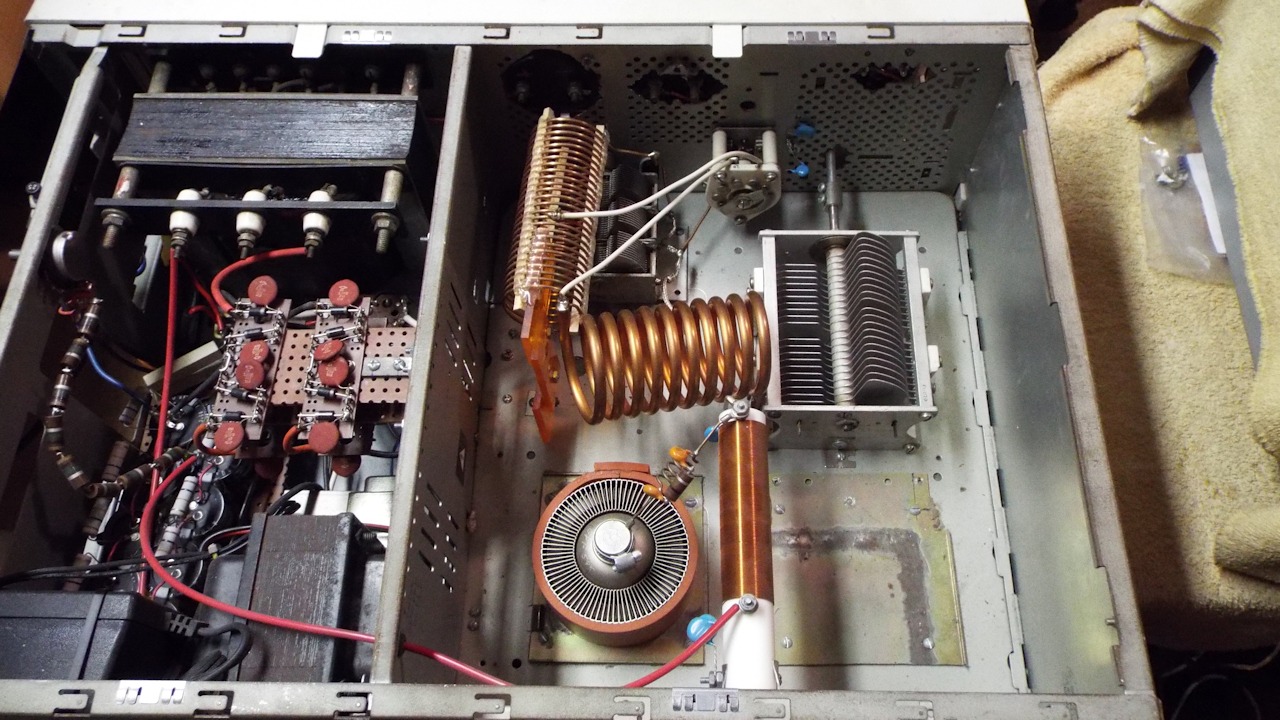

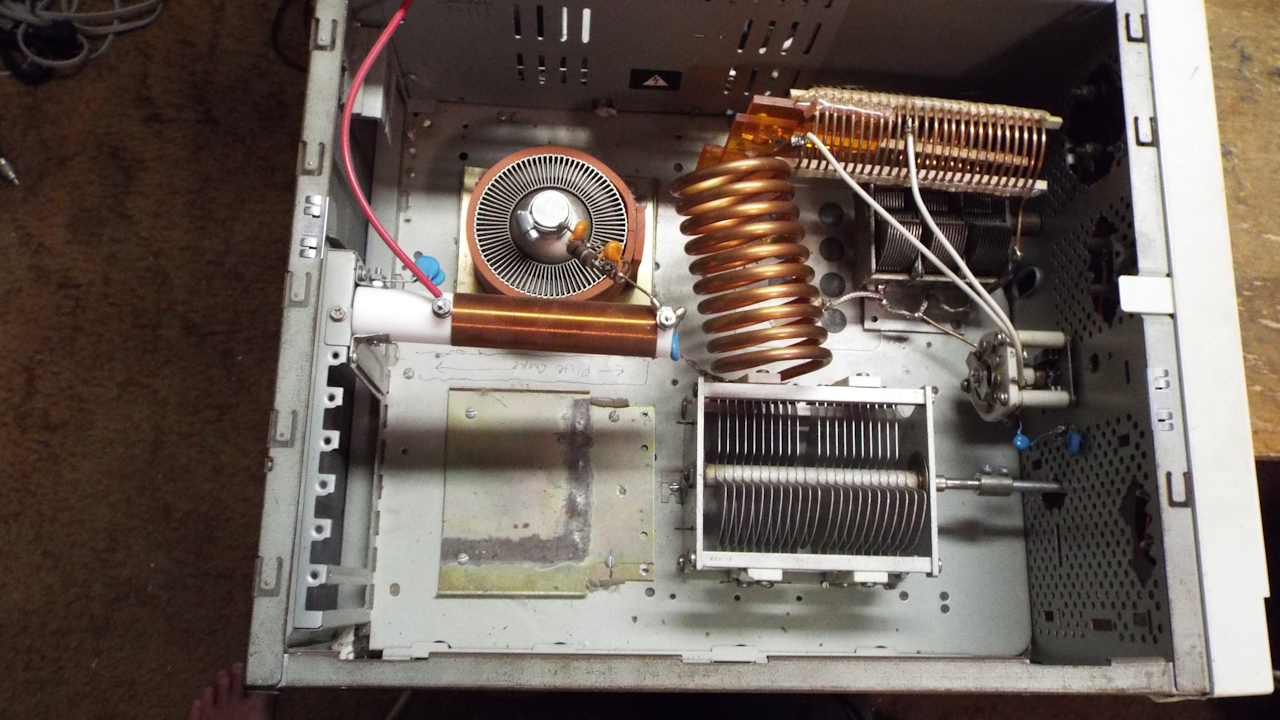

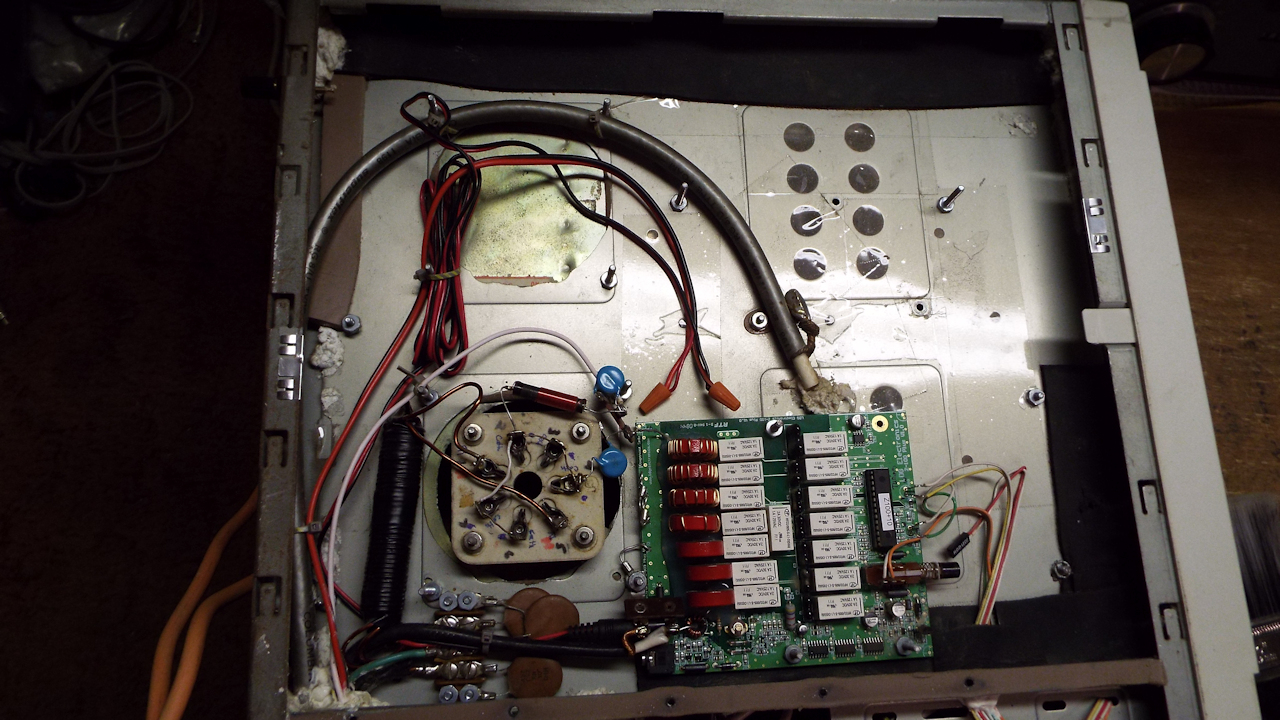

Some Pics
of the "Beast" as I named it.
![](DSCF0297.jpg)
![](DSCF0299.jpg)
![](DSCF0301.jpg)
![](../../coax-cable-full-piece-15-tb.png)

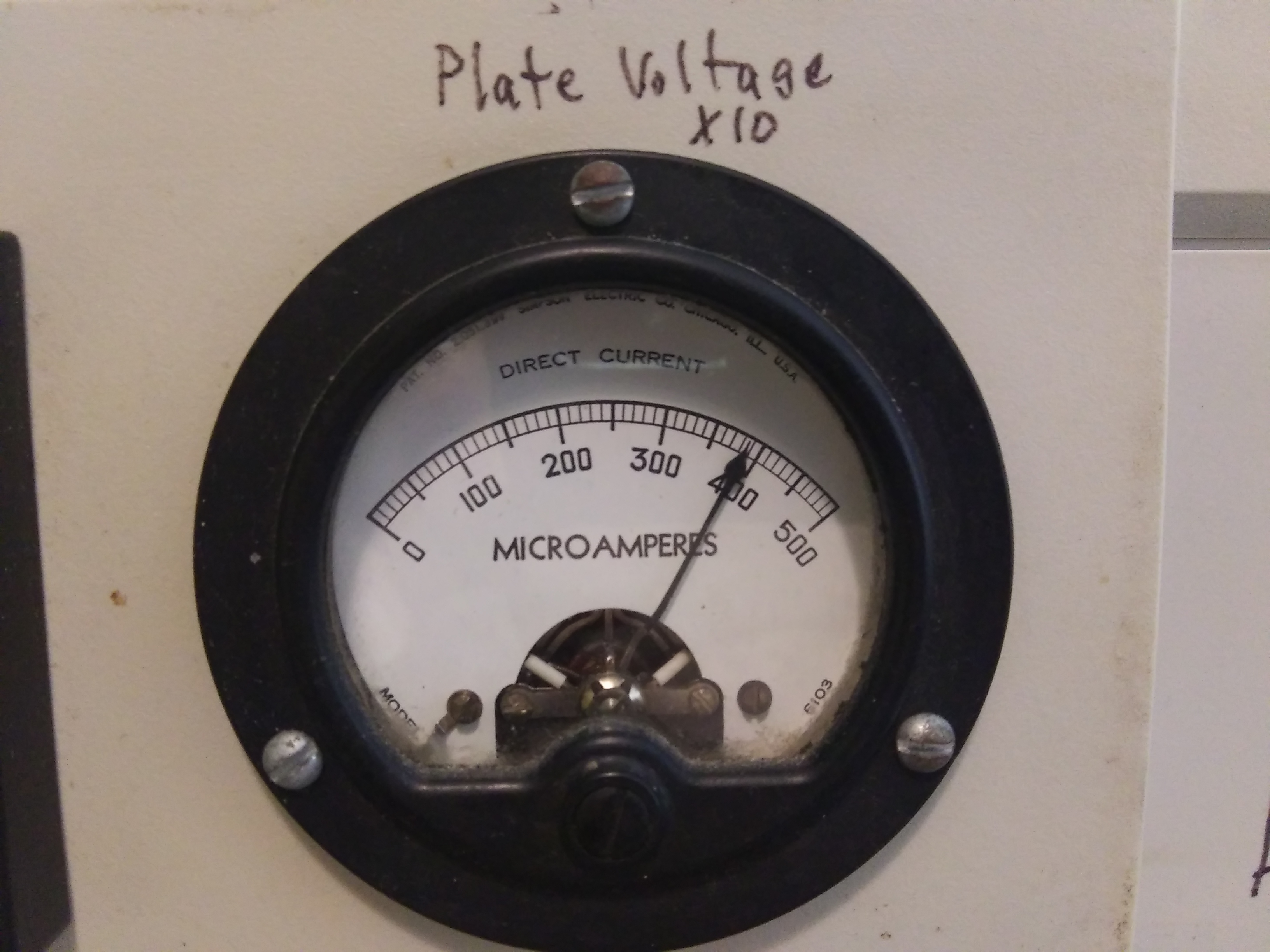

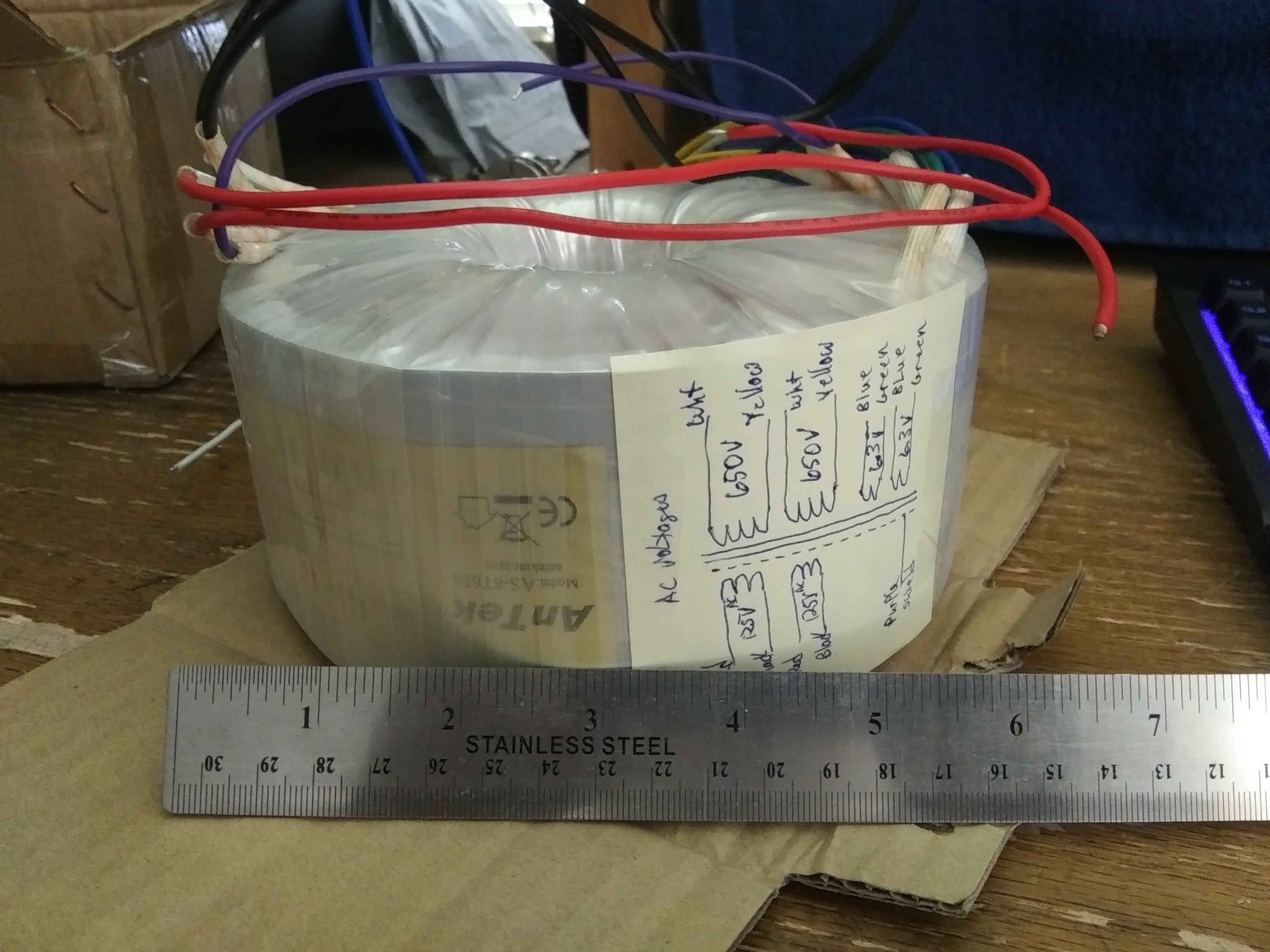

The new plate transformer and Plate Voltage (3910 VDC, on a Fluke 27/FM
and a 80k-6 HV Probe) Meter shows 3850v but was set at 3900,
line
variations make this change by a hundred or so volts. The MFGR. has a
QC problem and I can't recommend you use it.
![](20190920_152934.jpg)

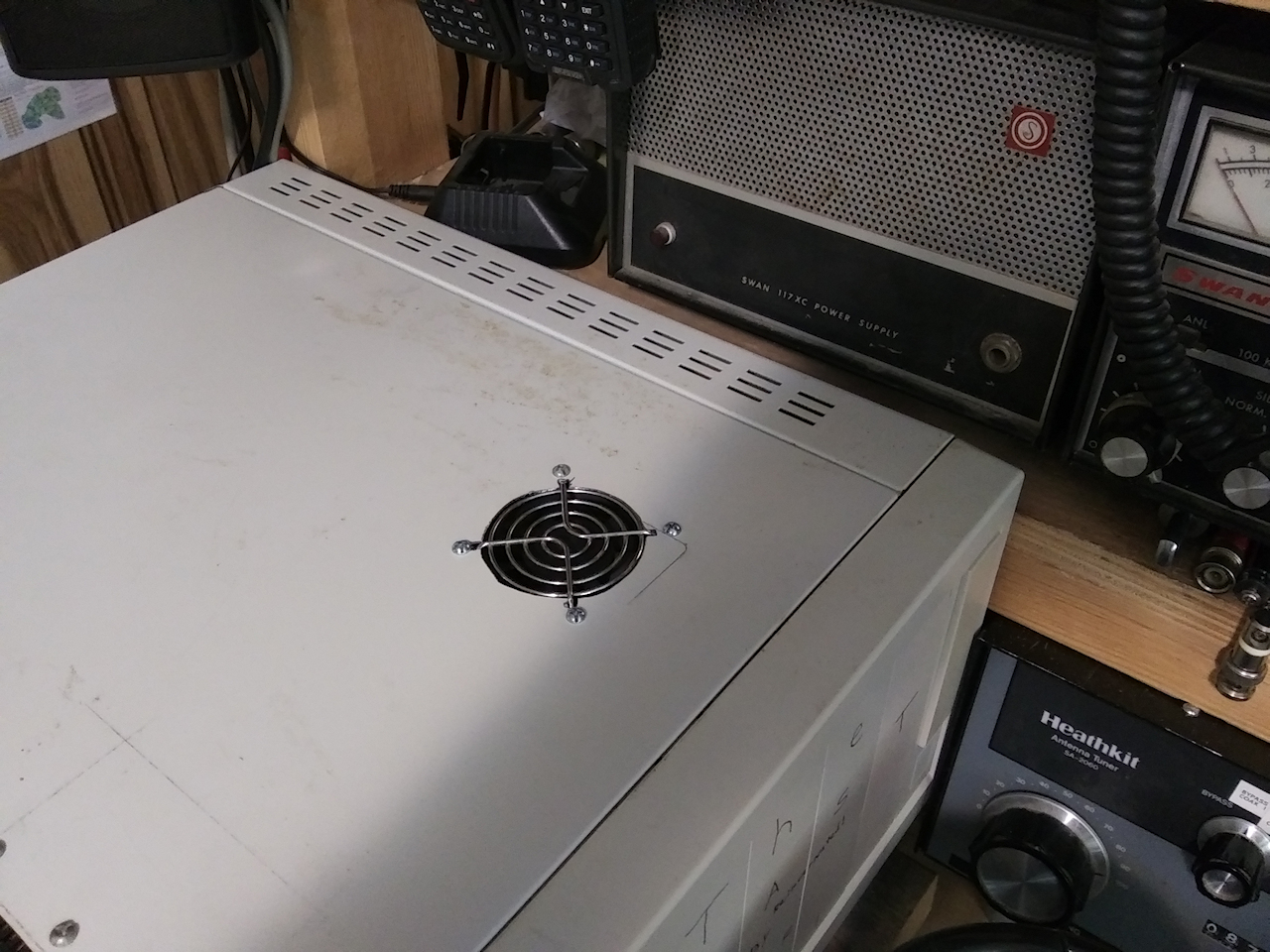

New Cooling fan for the PS area
![](20191124_154139.jpg)
![](../../coax-cable-full-piece-15-tb.png)

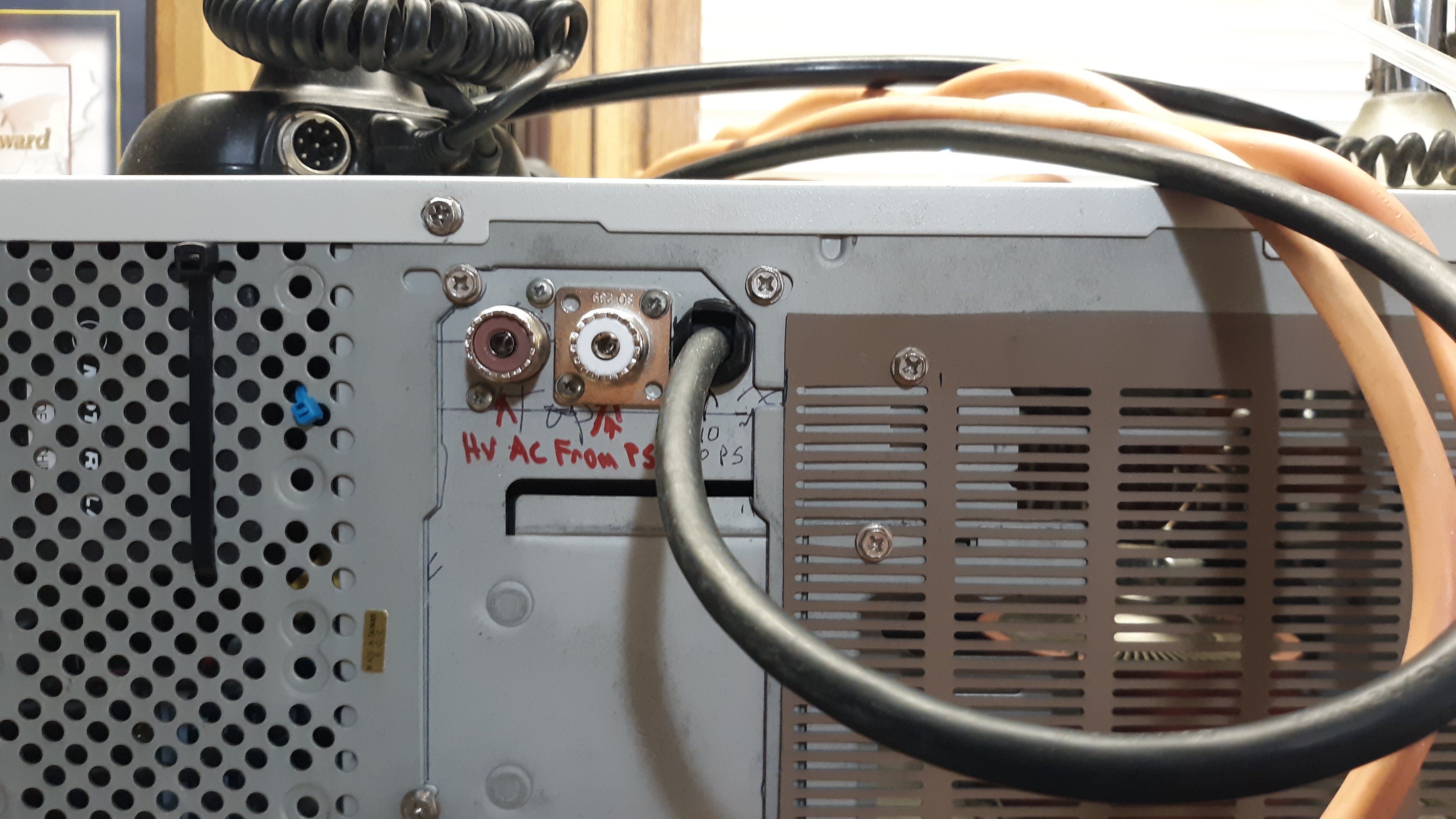

The newly added power and HV Connections to the External PS Module
![](20210313_143624.jpg)

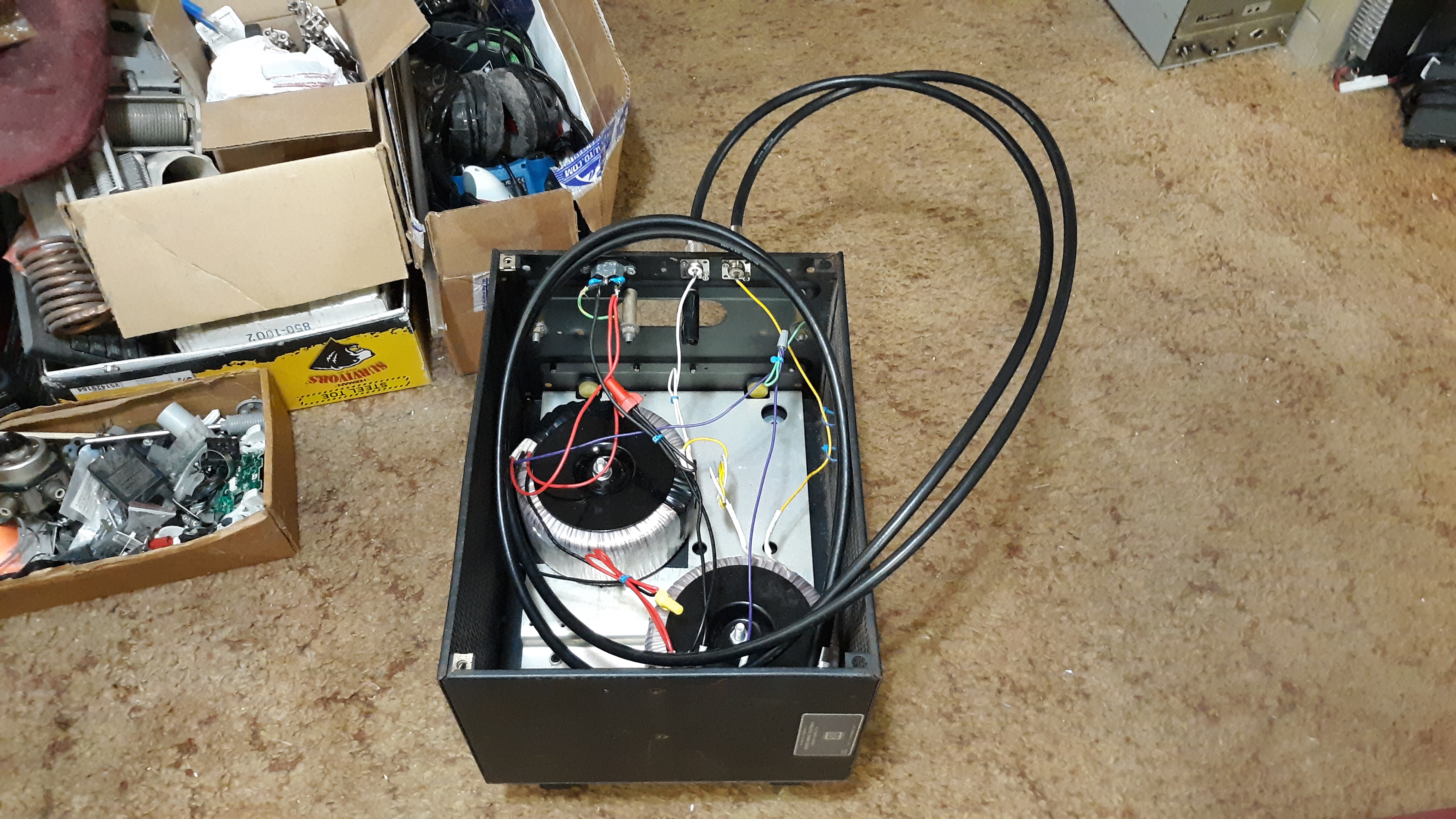

And the Finished external PS Module with the 2 Recovered
Transformers
![](20210313_143633.jpg)

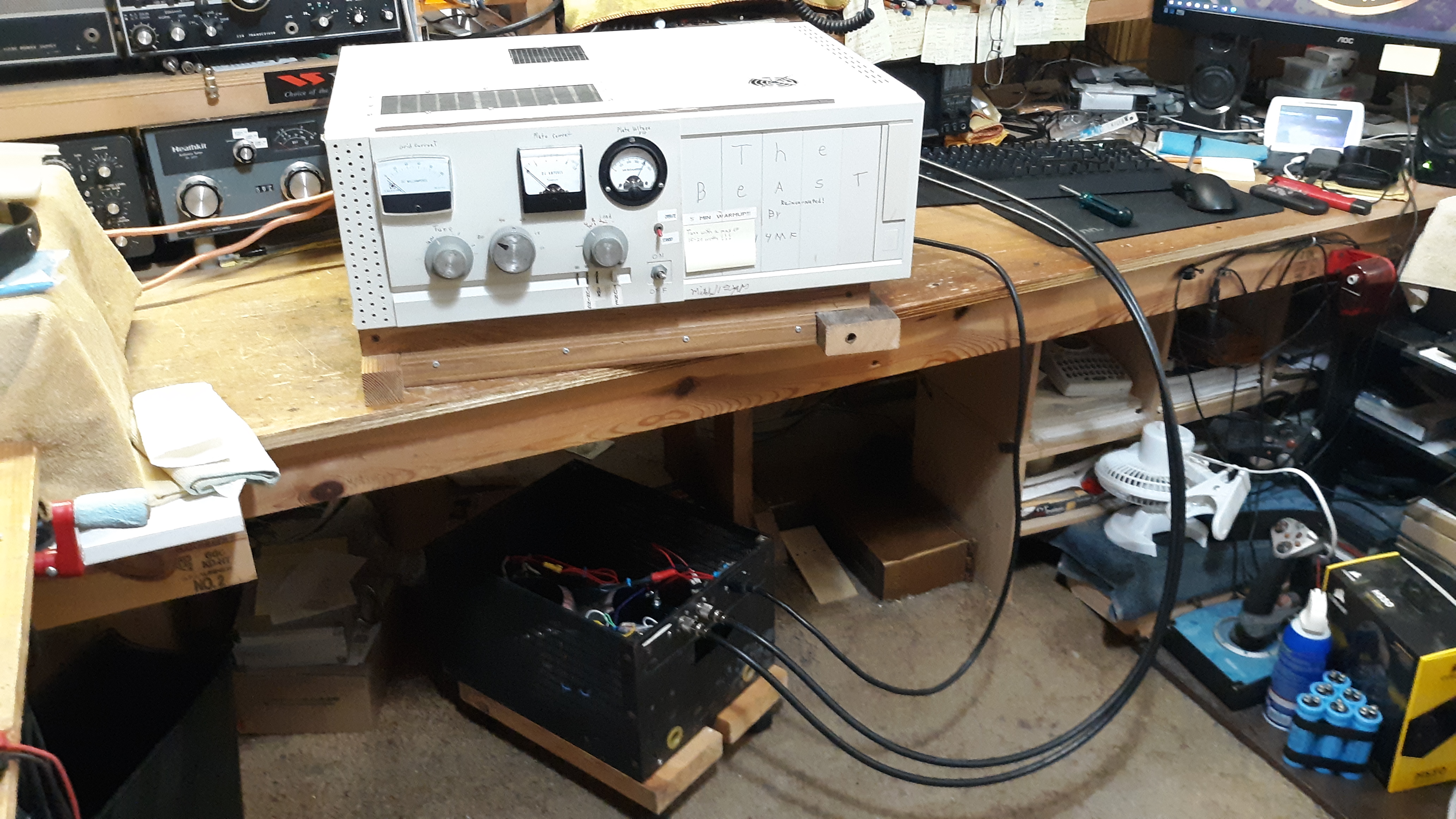

And it all working together
![](20210313_151332%280%29.jpg)
![](../../coax-cable-full-piece-15-tb.png)

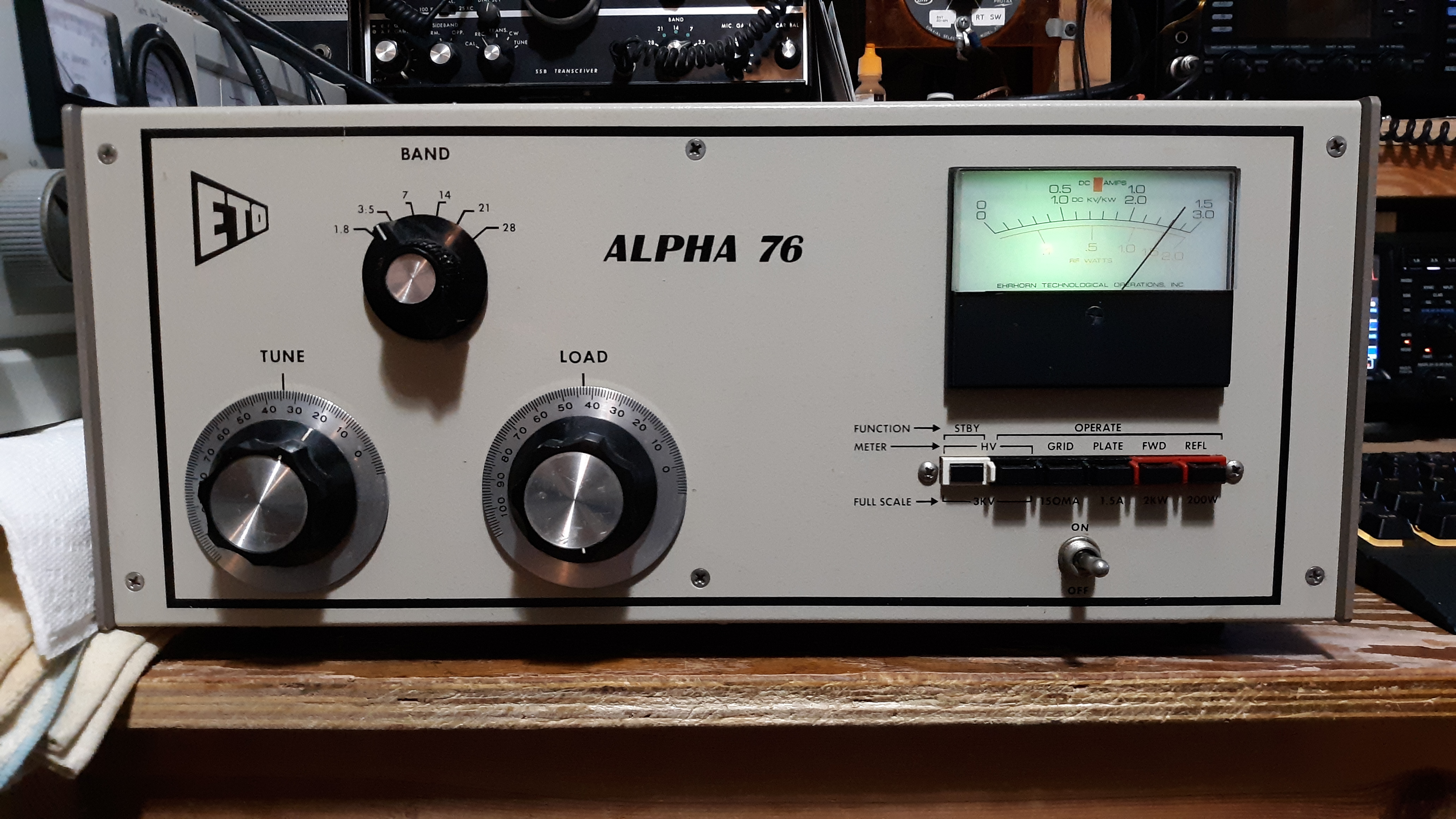

I can now Say I OWN a ETO/Alpha Amplifier
The Alpha 76
![](20201117_180330.jpg)
![](../../coax-cable-full-piece-15-tb.png)

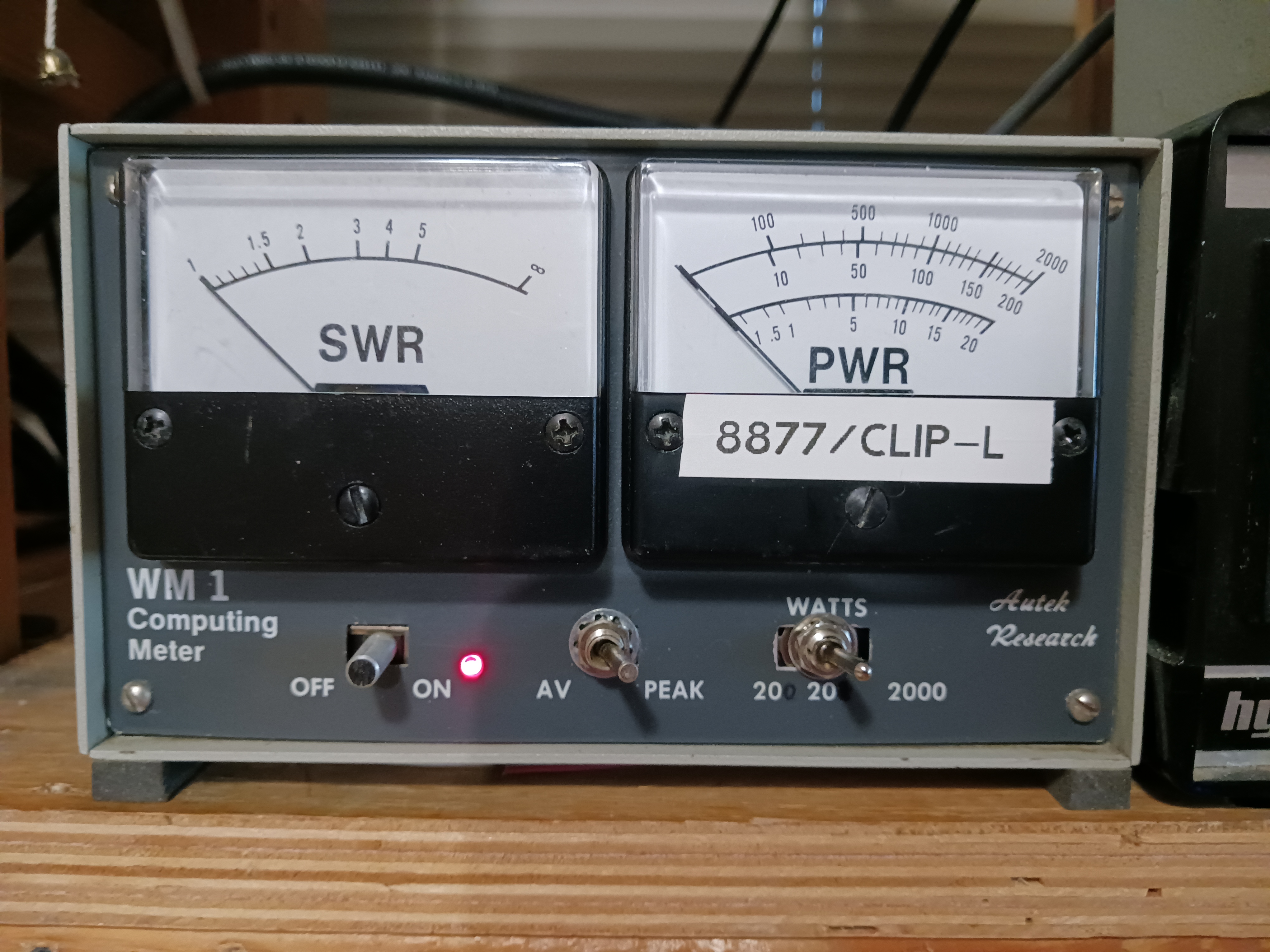

A Autek WM-1 mod to replace the Misc MFR RF Power Switch with a
2p3t ( on-off-on ) toggle switch, works a treat
![](20240105%20finished%20working%20sw%20change.jpg)
